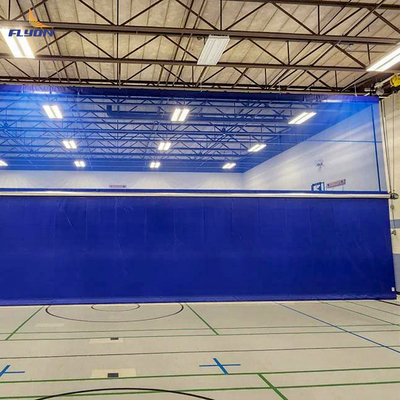

Sports Hall Divider Net Electric Motorized Roll up Divider Curtains Sports Dividing Curtains

Sports Hall Divider Net Electric Motorized Roll up Divider Curtains Sports Dividing Curtains

Tên thương hiệu: Flyon
Số mẫu: rèm chia
MOQ: 50 mét vuông
giá bán: 46-105 dollars per SQM
Điều khoản thanh toán: T/T, Liên minh phương Tây
Khả năng cung cấp: > = 50000 m2/tháng
Thông tin chi tiết
Nguồn gốc:
Thâm Quyến, Trung Quốc
Chứng nhận:
GBT5573-2008, CE
Vật liệu:
Lưới/ vinyl
Màu sắc:
Màu đỏ, xanh dương, xanh lá cây, vàng, trắng, xám và tùy chỉnh
Kích cỡ:
Có thể tùy chỉnh
Tốc độ nâng:
7,5 mét / phút
Hơi thở:
> 45%
chi tiết đóng gói:
Gói tiêu chuẩn
chi tiết đóng gói:
Hộp gỗ
Khả năng cung cấp:
> = 50000 m2/tháng
Mô tả Sản phẩm

Product Discriptions

Sports Hall Divider Net Electric Motorized Roll up Divider Curtains Sports Dividing Curtains


Single curtain system:

Product Name
Divider Curtain
Total hanging weight
≤ 2.5 kg/m
Maximum height
12m
Hanging spacing
≤ 3m
Maximum width
36m
Maximum bearing capacity
(a lifting point)
≤ 80kg
Maximum area
300m²
Maximum hanging weight
≤ 750kg


Color Choices
Sports Hall Divider Net Electric Motorized Roll up Divider Curtains Sports Dividing Curtains 0
Sports Hall Divider Net Electric Motorized Roll up Divider Curtains Sports Dividing Curtains 1

Model

Sports Hall Divider Net Electric Motorized Roll up Divider Curtains Sports Dividing Curtains 2

Mention:
*A safety gap of at least 50cm should be maintained between this partition curtain system and adjacent partition curtains or walls.
*A safety distance of at least 15 cm must be left on the side without the engine running.
*There should be at least 5cm clearance between the bottom of the partition curtain and the ground.

Electric and Control System
✅The middle reel adopts a high-performance drum motor (220V, 450W, 120N/M), an internal meshing planetary gear reducer, upper and lower brake limiters, push-button limit switches, automatic reset and thermal overload protection systems, and operates stably and reliably.


Product Advantages
✅Double curtains are made of high quality PVC to absorb sound.
✅Provides partial mesh so that light can pass through.
✅The basic system includes all required materials and parts as well as the load-bearing structure (aluminum trusses).
✅Environmentally friendly, tear-resistant, high-strength, fire-resistant
✅The entire system is very simple to use and there are a variety of options to choose from.


Project Presentation
Sports Hall Divider Net Electric Motorized Roll up Divider Curtains Sports Dividing Curtains 3Sports Hall Divider Net Electric Motorized Roll up Divider Curtains Sports Dividing Curtains 4
Sports Hall Divider Net Electric Motorized Roll up Divider Curtains Sports Dividing Curtains 5Sports Hall Divider Net Electric Motorized Roll up Divider Curtains Sports Dividing Curtains 6
