Electric Motorized Divider Curtain with Customizable Size and High Breathability for Sports Halls

Electric Motorized Divider Curtain with Customizable Size and High Breathability for Sports Halls

Tên thương hiệu:	Flyon
Số mẫu:	rèm chia
MOQ:	50 mét vuông
giá bán:	46-105 dollars per SQM
Điều khoản thanh toán:	T/T, Công Đoàn Phương Tây
Khả năng cung cấp:	> = 50000 m2/tháng

Thông tin chi tiết

Mô tả Sản phẩm

Thông tin chi tiết

Nguồn gốc:

Thâm Quyến, Trung Quốc

Chứng nhận:

GBT5573-2008, CE

Vật liệu:

Lưới/ vinyl

Màu sắc:

Màu đỏ, xanh dương, xanh lá cây, vàng, trắng, xám và tùy chỉnh

KÍCH CỠ:

Có thể tùy chỉnh

Tốc độ nâng:

7,5 mét / phút

Thoáng khí:

> 45%

chi tiết đóng gói:

Gói tiêu chuẩn

chi tiết đóng gói:

Hộp gỗ

Khả năng cung cấp:

> = 50000 m2/tháng

Làm nổi bật:

Electric Motorized Divider Curtain

Customizable Size Dividing Curtain

High Breathability Sports Hall Divider

Mô tả Sản phẩm

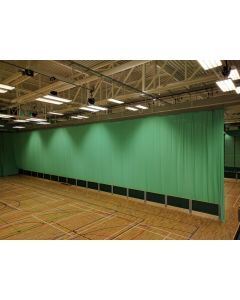

Electric Motorized Divider Curtain with Customizable Size and High Breathability for Sports Halls

Professional sports dividing curtains designed for efficient space management in multi-purpose sports halls and facilities.

Single Curtain System Specifications

Product Name	Divider Curtain	Total Hanging Weight	≤ 2.5 kg/m
Maximum Height	12m	Hanging Spacing	≤ 3m
Maximum Width	36m	Maximum Bearing Capacity (per lifting point)	≤ 80kg
Maximum Area	300m²	Maximum Hanging Weight	≤ 750kg

Color Choices

Model Options

Installation Safety Requirements

A safety gap of at least 50cm should be maintained between this partition curtain system and adjacent partition curtains or walls.
A safety distance of at least 15cm must be left on the side without the engine running.
There should be at least 5cm clearance between the bottom of the partition curtain and the ground.

Electric and Control System

The middle reel utilizes a high-performance drum motor (220V, 450W, 120N/M) with internal meshing planetary gear reducer, upper and lower brake limiters, push-button limit switches, automatic reset and thermal overload protection systems for stable and reliable operation.

Product Advantages

Double curtains made of high-quality PVC for superior sound absorption
Partial mesh design allows natural light transmission
Complete system includes all required materials, parts, and aluminum truss load-bearing structure
Environmentally friendly, tear-resistant, high-strength, and fire-resistant materials
Simple operation with multiple configuration options available

Project Presentation
